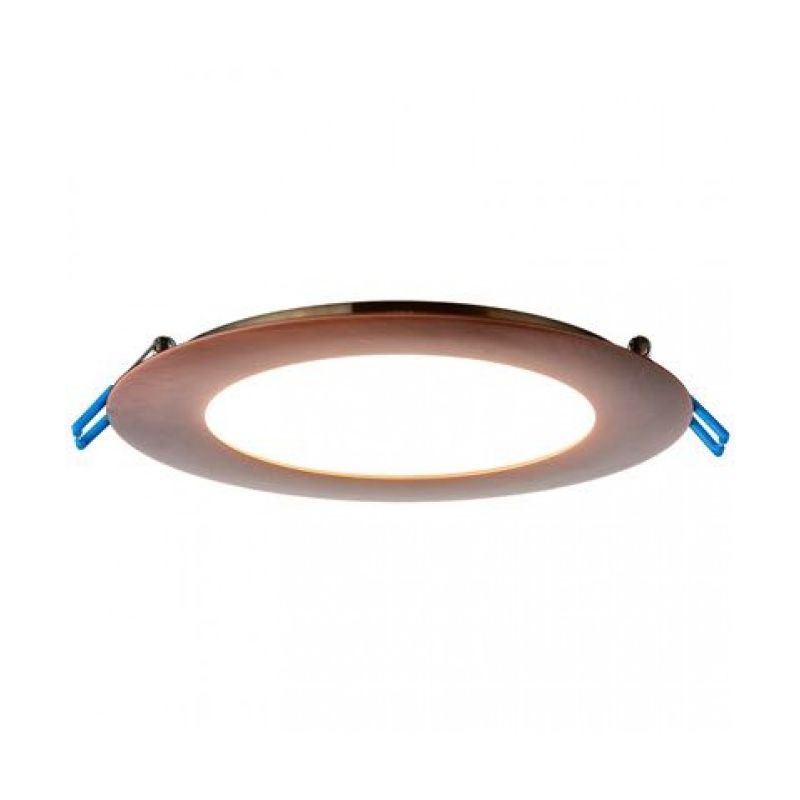

Lotus 17 Watt 6" Ultimate Super Thin Round Recessed LED Downlight - 3000K - 980 Lumens - Brushed Copper
6" Round Recessed LED With Integral Driver In Connection Box Fits Where No Other Recessed Fixture Can
FEATURES & BENEFITS :
1/2" Deep - Install Directly Under Joists, Maximum Layout Flexibility Wider Trim - No Goof Rings Needed For Covering Old 6" Holes Driver Inside Connection Box - No Junction Box Needed
Fast & Easy To Install - Save On Labor Type IC Rated - No Housing Required CRI 90 + for True Color Rendering
MOUNTING :
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips. Ceiling Clearance Required For Driver: 1 1/2"
|
SPECIFICATION |
|
|
Applications |
Recessed Ceiling, Showers & Soffits |
|
Energy Used |
17 W |
|
Colour Temperature |
2700 | 3000 | 4000 | 5000 | DTW 28-20| DTW 35-20 |
|
Light Output |
950 | 980 | 1000 | 1050 | 950 | 980 |
|
Halogen Equivalent |
100 W |
|
Beam Angle |
110° |
|
CRI |
90 + |
|
Default Driver Input |
120V AC Triac Dimmable |
|
Optional Driver Input |
120V-347V AC 0-10V Dimmable |
|
Junction Box Wire Capacity |
0.95 |
|
Power Factor |
|
|
Approved Location |
Insulated Ceiling, Wet & Damp Locations |
|
IP Rating |
IP 54 |
|
Air Tight |
Yes |
|
Ambient Temperature |
-40°F (-40°C) to +104°F (+40°C) |
|
Projected Life |
70% Light Output at 50,000 Hours |
|
Certification |
cULus, Energy Star (except DTW), T24 |
|
Warranty |
10 Year on Residential |
DIMENSIONS ID 6 1/8" OD 7 1/2" Cut Out 6 1/4" to 6 1/2"
