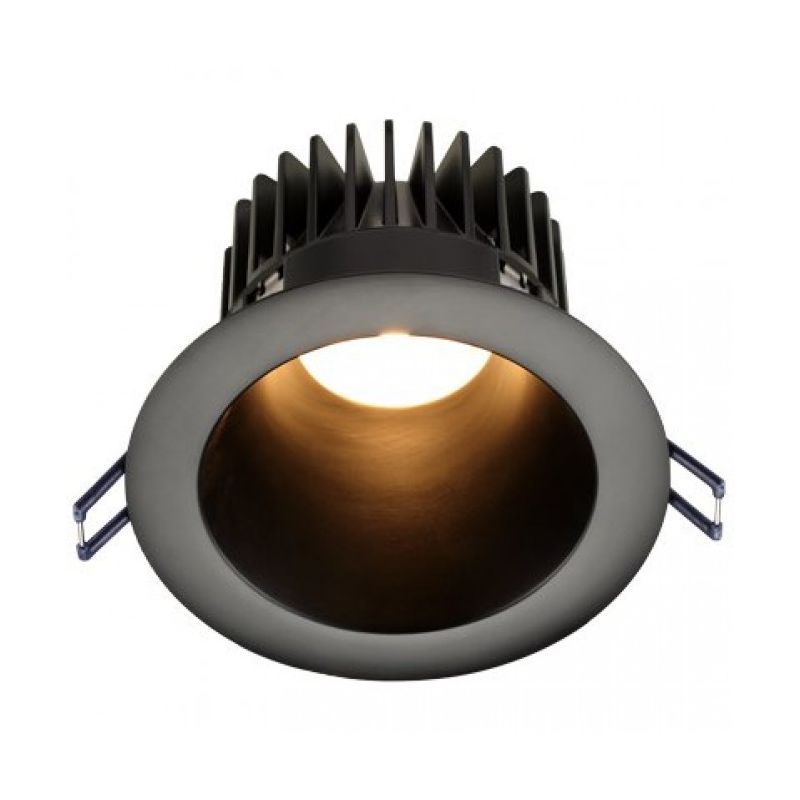

Lotus 18 Watt 4" Round Deep Regressed HO LED Downlight - Black Reflector - Black Trim - Dim to Warm - 1,150 Lumens - 120V
4" Round Deep Regressed LED - Elegant Design Without Glare Commercial Grade Quality Built To Last
FEATURES & BENEFITS :
15W & 18W High Output versions with CRI 90+ Type IC, Air-Tight & Wet - No Housing Required
3 1/2" Deep - Install Where Ceiling Space Is Limited Armored Cable & Metal Connectors - Open Plenum Rated
Driver Inside Connection Box with Romex Quick Connectors and Knock Outs - Fast Installation & No Junction Box Needed
|
SPECIFICATION |
|
|
Applications |
Recessed Ceiling Mount |
|
Energy Used |
15W Regular / 18W High Output |
|
Color Temperature (K) |
2700 | 3000 | 3500 | 4000 | 5000 | DTW 3-2 |
|
Light Output 15W (lm) |
1100 | 1200 | 1250 | 1300 | 1400 | 900 |
|
Light Output 18W (lm) |
1500 | 1550 | 1600 | 1650 | 1700 | 1150 |
|
Beam Angle |
30° |
|
CRI |
90 + |
|
Default Driver Input |
120V AC Triac Dimmable |
|
Optional Driver Input |
120V-347V AC 0-10V Dimmable |
|
Junction Box Wire Capacity |
Max 5 No 12 AWG or 8 No 14 AWG |
|
Power Factor |
0.98 |
|
Approved Location |
Insulated Ceilings, Open Plenum, Wet |
|
IP Rating |
IP 54 |
|
Air Tight |
Yes |
|
Ambient Temperature |
-40°F (-40°C) to +104°F (+40°C) |
|
Projected Life |
70% Light Output at 50,000 Hours |
|
Certification |
cULus, Energy Star (except DTW), T24 |
|
Warranty |
10 Year Residential / 5 Year Commercial |
DIMENSIONS ID 4" OD 4 7/8" Ceiling Clearance Required: 3"
CUT OUT Regular Trims: 4 1/4" Invisible Trims: 4 1/2"
